A specific windmill trailer has a tower adapter to its structure. The tower can be fixed on the two sides of adaptors.
The adaptors can be adjusted to fit the different dimension of the tower. This is what you should go for if your need revolves around transporting windmill towers.

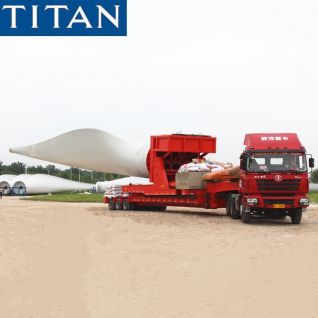

TITAN 9th-generation windmill blade transport trailer that is mounted on modular trailer. TITAN 9th-generation windmill blade transport trailer for transport rotor blade, wind blades. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.
According to different road conditions and load requirements, TITAN windmill trailer can be mounted and transported on both on a pulled platform trailer combination as well as module trailer, and self propelled modules.
Windmill trailer can transport blades of model 115-156. It is suitable for the wind turbine blades length of 56.5-76 meters, and the longest can transport the wind blade of 80 meters.
This transportation method generally uses a special blade transportation wind turbine tower transport trailer with blade lifting-rotating-hydraulic rear wheel steering. The special wind turbine tower transport can lift the blades through hydraulic control and rotate itself 360° during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.)

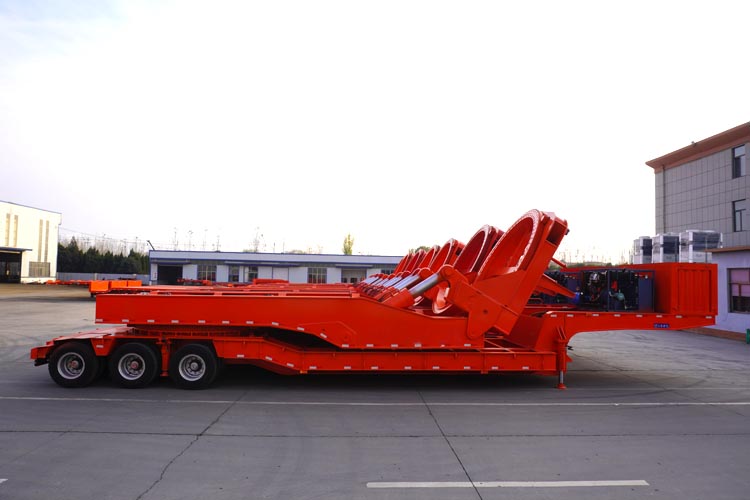

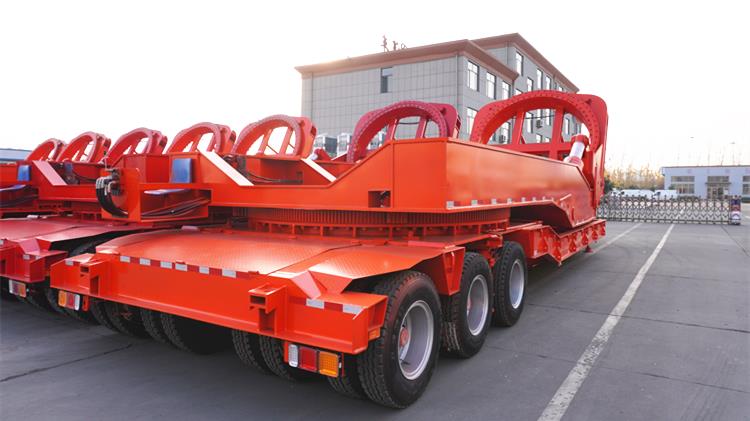

Modular trailer with rotor blade adapter for sale
wind turbine tower transport vehicle for sale
Wind Turbine Tower Transport
Brand: TITAN windmill blade transport trailer

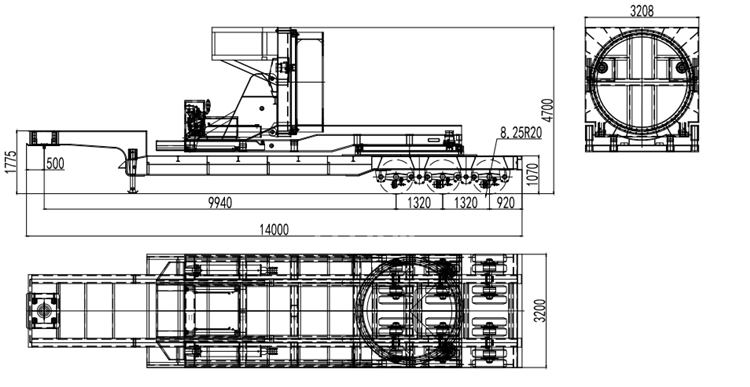

Dimension: 19500mm*3400mm*4650mm
Applicable blade: 56.5m-76m
Axle: 3 lines 6 axles
Tires: 24 units
Max rotation angle: 360°
1. Max rotation angle of the rotor blade 360°
2. Angle of inclination up to 60°
3. Radio remote control with display of wind speed, transverse gradient, blade position, ballast position
4. TITAN wind blade adapter can combine with modular semi trailer
5. Self-balancing counterweight ensure the transport stability and safety
If you are interested in our products, welcome information for inquiry or online! Fill in your details and suggestions please! Thank you!
We will achieve ultimate perfection in serving and providing more details, price, catalog, photo, video for you!
Order of goods on hand or made to order are welcomed.

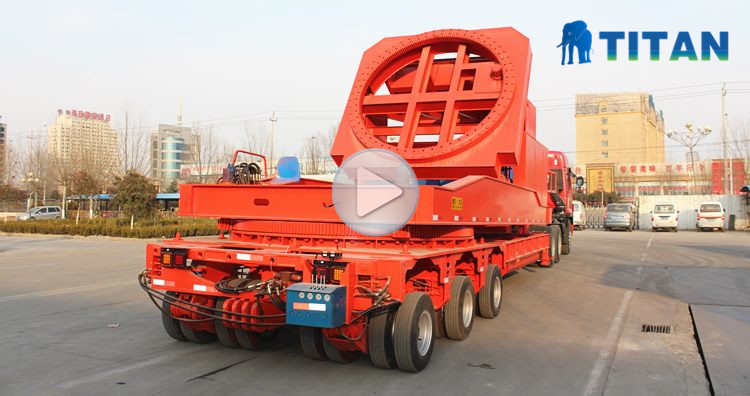

Wind turbine transport vehicles - modular trailer with rotor blade adapter details display video
