Tipping Chassis trailer is suitable for the transportation of bulk cargo such as building materials. Container Dump Trailer also can transport containers.
Tipping Chassis semi trailers have many uses, and it can transport 20ft and 40ft containers. container dump trailers have 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
2 axle 40ft container tipper chassis for sale

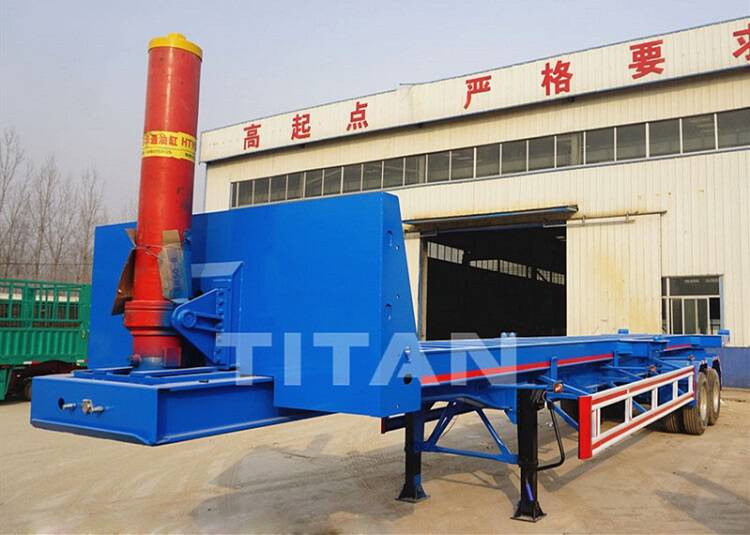

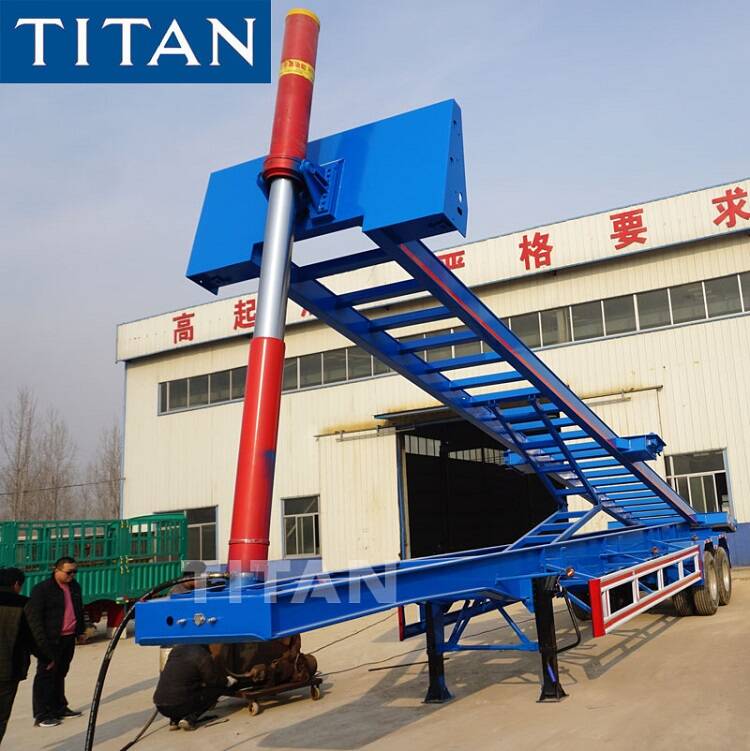

Tipping tilt chassis trailer details display
Overall dimension：13000mm * 2500mm *2900mm
Transport : 20ft, 40ft container
Axles：2 axles, 13t
Suspension：Heavy duty mechanical suspension
Tipping system: 185 hydraulic cylinder
Tire：8 units
King pin：90#
Landing gear：JOST
Brake system: WABCO
Electrical system: 24V, LED lights
The tipper chassis tire tread or both sides are worn
Solution: Check whether the tipper container tire pressure is too low or there is a problem with the tire quality.
Don't blindly pursue cheap and use poor quality tires. Check if the fixing screws are loose.
Whether the axle shaft or pressure bearing of the steering axle is worn out, deformed or damaged.
Check the dump trailer chassis tire pressure daily to check the wear of the tire tread.
Find them in advance and repair them in time to minimize container tipper chassis losses.
Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
Welcome to click “TITAN Tipper Trailer” on Youtube, to get more videos.
