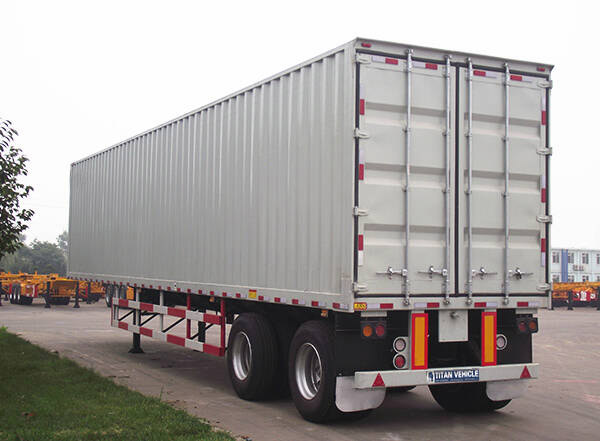

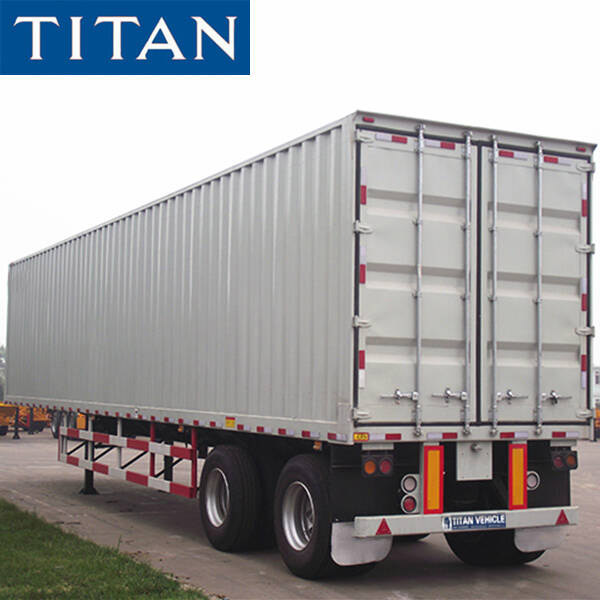

2 Axle Van Semi Trailer

Product Description:

Van trailer is used for the transportation of household appliances, textile goods, coal, sand and stone and other construction materials, as well as map goods. The van semi-trailer is a semi-trailer with a beam-through structure and a closed side wall design for the upper part, which can effectively reduce the lateral risk of the vehicle during high-speed driving, reduce energy consumption, and has a strong carrying capacity. The advantages of high safety factor, reasonable design, sturdiness and durability.

Specification:

Dimension(mm): 13,000x2,500x4,000mm(The height can be adjusted)

Tare Weight: 7,500kg(+/- 5%)

Payload: 40T

Axle: 2 axles

Tire: 8 units

Suspension: mechanical spring suspension

Landing Gear: JOST

Kingpin: 3.5”JOST, exchangeable

Brake System: WABCO brake valve.

Electrical System: 24V, LED lamp
